Hebel
Better to build with, better by design, and better to live in, Hebel is the ideal choice for your next home.
We have been proudly partnered with Hebel for over a decade.
Through our strong partnering, Complete Lintels Building Supplies is fortunate to supply 100% Australian made Hebel products, delivered on time to your site and at competitive rates.
Choose Complete
Our Hebel Range
CSR Hebel is Australia’s leading manufacturer of autoclaved aerated concrete (AAC). Backed by CSR, the trusted name in building products, Hebel is a strong yet lightweight building product that is available in panels or blocks. It is kind to the environment, quick to build with and better to live in.
PowerPattern Track
-
>2400mm x 600mm x 75mm
>2700mm x 600mm x 75mm
>2850mm x 600mm x 75mm
>3000mm x 600mm x 75mm
>3300mm x 600mm x 75mm

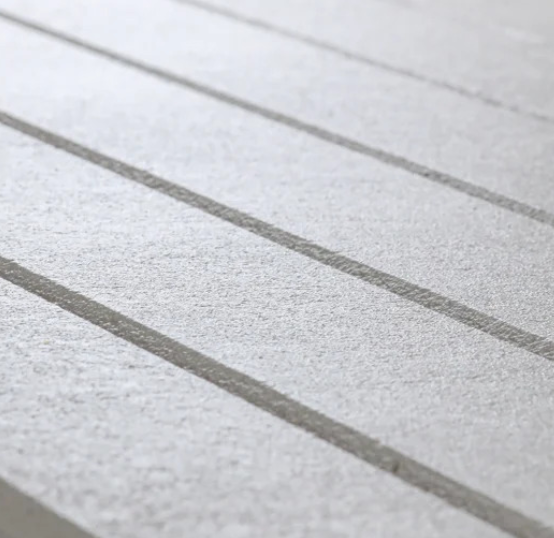

PowerPattern Track

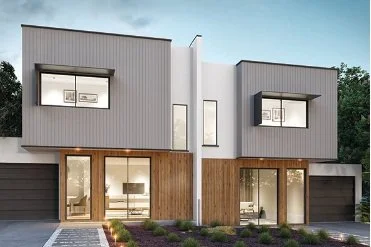

Create lasting curb appeal with Hebel’s Australian made PowerPattern Track collection.
This new residential facade collection uses Hebel panels with routed vertical lines into the face that are ready to install. The “V” groove lines are available in 100mm, 150mm, 200mm or 300mm intervals and as a plain panel with no grooves (bevelled long edges).
Panels can be used in combination with rendered Hebel walls to create a composite design using just one product - Hebel.
PowerPattern FAQ’s
-

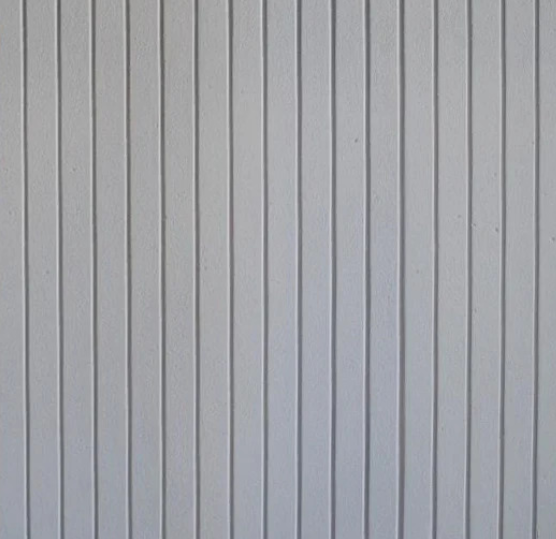

PowerPattern Track is a contemporary cladding system using routed vertical lines into the face of the panel, ready to install. Its smooth surface can be painted, rather than rendered giving increased design flexibility.
-
The panels are 75mm thick and provides an attractive depth for reveals around openings.
-
The range of patterns available uses vertical lines in either 100mm, 150mm, 200mm and 300mm intervals. Also available as a plain panel with no groove (bevelled long edges).
-

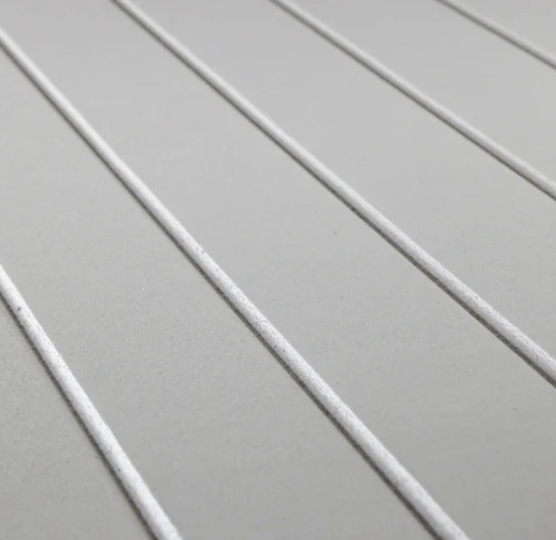

The routed “V” groove lines are a depth of 7.5mm.
-
PowerPattern has been designed so it is installed using similar installation methods as the current PowerPanelXL external wall system. Special care and consideration must be given to panel layout so the pattern remains consistent and symmetrical for the best aesthetic outcome.
-
PowerPattern allows for painted finishes. A 3-coat acrylic based coating is recommended.
-
Yes, the PowerPattern Track cladding system is non-combustible with an FRL of 180/180/180.
-
Thermal rating (R value): R2.06 to R3.22.
Common Wall Thickness: 199mm, based on 90mm stud + 10mm plasterboard + 24mm top hat + 75mm PowerPattern. With variations in stud thickness and top hats, wall widths can vary between 179mm to 210mm.
-
The PowerPattern Track system has been designed to minimise trades however, it is recommended that trained contractors are used to ensure they install the system to the design and installation guidelines.
PowerProfile
-
>2400mm x 600mm x 75mm
>2700mm x 600mm x 75mm
>2850mm x 600mm x 75mm
>3000mm x 600mm x 75mm
>3300mm x 600mm x 75mm
Colour options (Colourbond) for accessories
Basalt
Dune
Monument

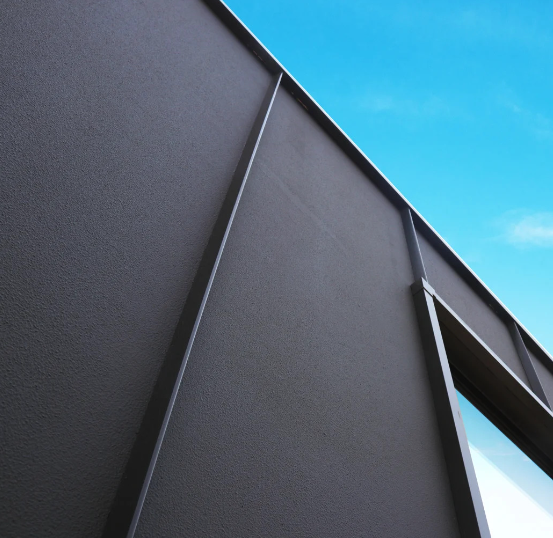

Hebel PowerProfile creates the defined look of traditional standing seam and metal cladding systems, with all of the performance benefits of Hebel.
The new system comprises a universal backing clip that is fixed to the Hebel facade, and a powder coated aluminium profile snaps onto the clip.
The profiles are available in two styles and three popular Colorbond® colours, Dune®, Basalt™ and Monument®, offering a myriad of design options for facades using just one product – Hebel.
PowerProfile
PowerProfile FAQ’s
-

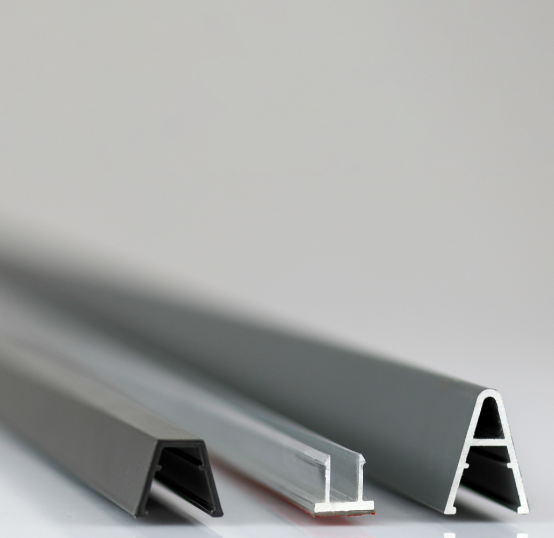

It is a decorative cladding system that uses high quality aluminium powder coated snap on extrusions to create a similar look to standing seam and metal cladding systems, but with all the performance benefits of Hebel.
-
The panels are 75mm thick and provides an attractive deep reveal around openings.
-
Yes. The common design for metal cladding is to space the profiles at 600mm centres which gives you the freedom to create any number of looks for your façade.
-
The profiles snap onto an aluminium, universal backing clip which is screw fixed to the coated Hebel cladding.
-
Yes, the panels have a fire rating of up to 180/180/180 when subjected to an external fire source.
Note: Based on a system using Hebel Adhesive at panel joints.
-
The Hebel PowerProfile system provides similar R ratings as our current Hebel PowerPanelXL residential external wall system. R2.13 to R3.29.
-
No, Hebel panels are solid and strong autoclaved aerated concrete and will not buckle or warp like metal cladding, commonly referred to in the industry as the ‘oil can’ affect.
-
The profiles provide shadowlines to the façade to overcome glancing light issues along the wall.
-
The PowerProfile system has been designed to minimise trades however, it is recommended that trained contractors are used to ensure they install the system to the design and installation guidelines.
-
The PowerPattern Track system has been designed to minimise trades however, it is recommended that trained contractors are used to ensure they install the system to the design and installation guidelines.
-

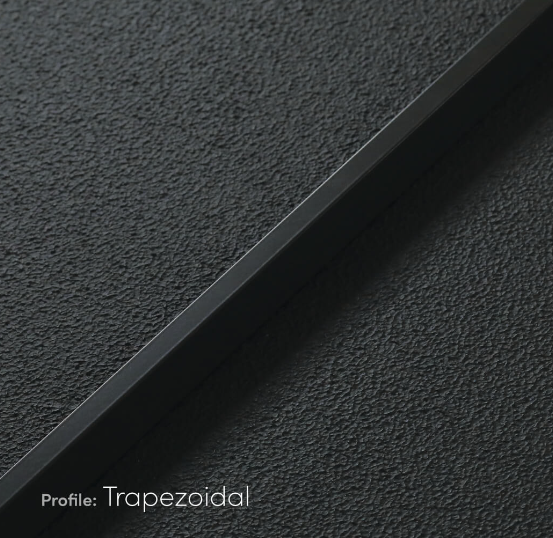

There are two profiles available: Trapezoidal and Bullnose.
-
There are two trims available: Perimeter and Parapet.
Want to know more about Hebel?
PowerPanel XL
Suitable for use on residential external facades PowerPanelXL is fast and easy to install with outstanding acoustic and thermal qualities.

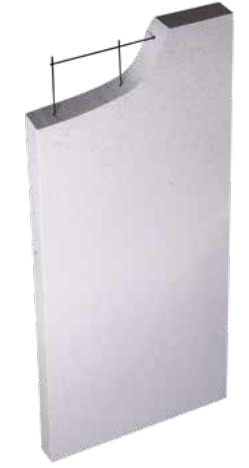

The PowerPanel XL external wall system consists of 75mm thick, steel-reinforced AAC panels, fixed vertically to Hebel’s patented perforated Top Hat sections – providing a faster way of constructing external facades for residential builds.
Compared to traditional masonry, installation of the PowerPanelXL system is 60% faster and provides outstanding acoustic and thermal insulation performance. It is also non-combustible, making it the perfect choice in bushfire zones.
Strong and solid, each PowerPanelXL panel also contains steel reinforcement for added strength with an anti-corrosion layer on the steel for maximum durability.
Specifications
PowerPanel XL - Standard Range 75mm
All panels below are with Square Edge, Single Mesh & No Bevel
| Height (mm) | Width (mm) | Thickness (mm) |
|---|---|---|
| 2400 | 600 | 75 |
| 2550 | 600 | 75 |
| 2700 | 600 | 75 |
| 2800 | 600 | 75 |
| 2850 | 600 | 75 |
| 3000 | 600 | 75 |
| 3300 | 600 | 75 |
PowerPanel 50
Intertenancy / Dual Zero Boundary walls for low rise multi-residential buildings and external walls for houses and low rise multi-residential buildings

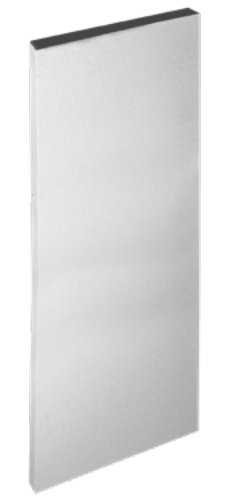

The patented Hebel PowerPanel50 panel is a great choice for intertenancy/party walls, dual zero boundary walls and external walls on low-rise multi-residential projects, and external walls on houses.
Fast and easy to install, Hebel PowerPanel50 is available in 2400mm, 2550mm, 2700mm, 2850mm and 3000mm lengths, each panel is 50mm thick and contains steel reinforcement for added strength with an anti-corrosion layer on the steel for maximum durability.
Hebel PowerPanel50 is developed, tested and manufactured here in Australia, and warranted by CSR.
Specifications
PowerPanel 50 - Standard Range 50mm
All panels below are with Square Edge, Single Mesh & No Bevel
| Height (mm) | Width (mm) | Thickness (mm) |
|---|---|---|
| 2400 | 600 | 50 |
| 2550 | 600 | 50 |
| 2700 | 600 | 50 |
| 2850 | 600 | 50 |
| 3000 | 600 | 50 |
An excellent flooring solution that provides the feel of a solid concrete floor without the price tag. Squeak-free with acoustic and thermal insulation properties.

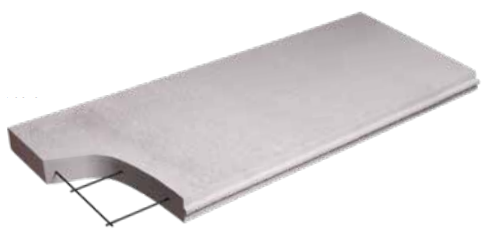

PowerFloor

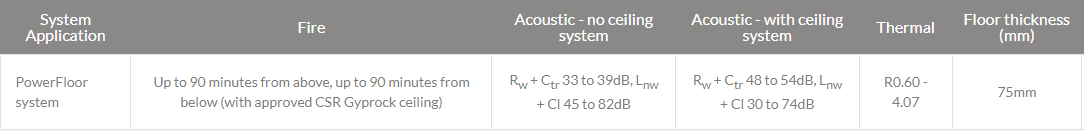

PowerFloor is a sound investment for a peaceful home. The strong and solid flooring system consists of 75mm steel-reinforced AAC panels, installed over steel or timber joists. This provides an excellent base for just about any floor covering – including timber strips, carpet and tiles.
The superior acoustic performance and thermal insulation properties of this flooring system mean it helps to keep your house warmer in winter and cooler in summer – as well as minimising noise transference between rooms and floors of the house.
Better still, there is none of the squeak or bounce and flex associated with particleboard flooring, or the expensive price tag that comes from traditional concrete floors, making it a great choice for first floors and suspended ground floors, decks and balconies.
Specifications
PowerFloor - Standard Range 75mm
All panels below are with Tongue & Groove, Single Mesh & No Bevel
| Height (mm) | Width (mm) | Thickness (mm) |
|---|---|---|
| 1800 | 600 | 75 |
PowerFence
Hebel’s innovative masonry fencing system is attractive, affordable and easy to install.
Hebel PowerFence is a modular structure using standard PowerPanels and steel posts, which can be quickly and easily installed. The system is extremely versatile, solid and strong, and doesn’t require extensive excavation or strip footing, making it ideal for houses, multi-residential projects, low-rise apartments and DIY projects.
PowerFence is the perfect addition to the home as it can be rendered or painted to enhance any home design, and routed to create different looks and finishes. Non-combustible, PowerFence is perfect for bushfire zones and it contains steel reinforcement for added strength with an anti-corrosion layer on the steel for maximum durability.
Create more privacy for your home and reduce external noise by using PowerFence as boundary fencing or as a beautiful fence for your home.
Specifications
Hebel Fence 75mm
All panels below are with Square Edge, Single Mesh & No Bevel
| Height (mm) | Width (mm) | Thickness (mm) |
|---|---|---|
| 1800 | 600 | 75 |
| 2400 | 600 | 75 |

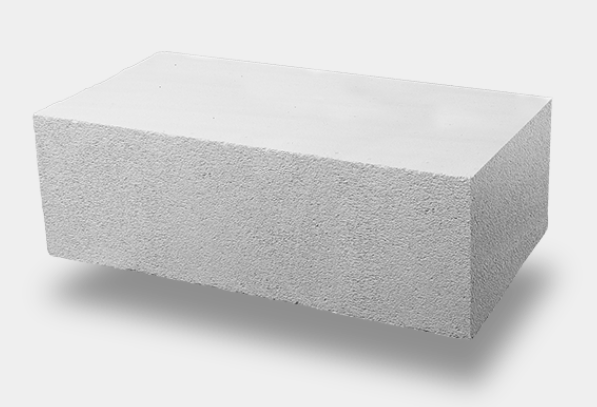

PowerBlock
The ideal alternative to double brick – delivering superior thermal performance and acoustic properties for homeowners.
The PowerBlock+ system is a solid method of construction with amazing acoustic and thermal insulation benefits – helping to create a more comfortable and energy efficient home.
Offering incredible design flexibility due to its capacity to be shaped and routed for added aesthetic appeal, PowerBlock+ is available in a range of sizes and is versatile enough to be used for loadbearing external walls up to 3 storeys, non-loadbearing interior walls and bathroom hobs and spas.
With over one and a half times the thermal resistance of double brick, superior acoustic performance and being non-combustible, Hebel PowerBlock+ systems satisfy Building Code of Australia (BCA) requirements and is a great choice for building your home.
Specifications
PowerBlock+ for Hobs & DIY
| Length (mm) | Height (mm) | Depth (mm) |
|---|---|---|
| 600 | 200 | 75 |
-
Hebel panels are a lightweight construction material compared with most other forms of concrete. Its density is low – a quarter of concrete’s, yet at the same time has good compressive strength. Hebel panels are used in the civil and utilities sectors for acoustic walls, fire walls and a combination of both.
The value of Hebel’s strength and solidity combined with ease of construction shines through in its applications in road and rail corridors, power sub-stations and tunnels.
-
Hebel systems go up quickly and easily which is why project owners and construction companies look to Hebel as the best solution. Site accessibility is often limited such as the upgrade to a fire wall in a road tunnel or a new sound barrier in a rail corridor. Unlike pre-fabricated concrete, Hebel systems can be installed with a very quick turnaround, with minimal disruption and in tight access spaces.
-
Designed specifically for the civil and utilities sectors and for highly flammable chemical storage, Hebel Fire Wall and PowerShield systems deliver very high standards in fire performance. For instance, the PowerShield High Performance Fire system designed to protect critical assets and the community, is certified for hydrocarbon fire exposure and designed to withstand heat up to 1300°C.
-
Engineered to protect the community from unwanted sound created in road and rail corridors and power sub-stations, the Hebel Acoustic Wall and PowerShield systems deliver superior acoustic performance with flexibility. As an example of this flexibility, the PowerShield Acoustic Absorption Wall system is tunable and can be adapted to cancel noise generated by a particular source.
-
Hebel systems provide a solid foundation for risk minimisation in design and construction. They are tested, well proven and designed to achieve fire and acoustic compliance easily. Combining the non-combustible property of the Hebel panels with advanced system designs, CSR Hebel delivers high value cost effective solutions that significantly reduce the number of fire and acoustic risk points in construction.
-
Hebel panels are a lightweight construction material compared with most other forms of concrete. Its density is low – a quarter of concrete’s, yet at the same time has good compressive strength. Hebel panels are used in the civil and utilities sectors for acoustic walls, fire walls and a combination of both.
The value of Hebel’s strength and solidity combined with ease of construction shines through in its applications in road and rail corridors, power sub-stations and tunnels.
-
Hebel panels are a lightweight construction material compared with most other forms of concrete. Its density is low – a quarter of concrete’s, yet at the same time has good compressive strength. Hebel panels are used in the civil and utilities sectors for acoustic walls, fire walls and a combination of both.
The value of Hebel’s strength and solidity combined with ease of construction shines through in its applications in road and rail corridors, power sub-stations and tunnels.
-
Hebel panel versatility comes through in its ability to incorporate unique bespoke patterns at comparatively low cost to traditional mould type casting. Decorative relief is readily achieved through the versatility of post production machining.
-
Hebel is an environmentally friendly choice of building material, treading lightly on this planet. Hebel is made using readily available raw materials. Waste generated in the manufacturing process is recycled, even down to the steam that’s produced.
Benefits of Hebel
External Walls
Hebel’s external wall systems are strong, solid and look fantastic too.
Hebel’s new Designer Range offers two new products, PowerProfile and PowerPattern, so you can get the look you want for your home.
Hebel PowerProfile external wall system is a simple way to accessorise your Hebel facade to replicate the look of traditional standing seam, metal cladding systems. Two profiles in three colours are available to customise your home design.
Hebel PowerPattern provides a contemporary option for facades with routed vertical lines into the face of the panel providing flexibility to elevate the look of your facade.
The panels in Hebel’s PowerPanelXL external wall system contain steel reinforcement with an anti-corrosion protection layer for added strength and durability. Fixed to steel or timber frames the system is extremely robust and is non-combustible, making it low-risk and ideal for bushfire prone areas. Measuring 75mm thick, the panels perform well thermally, keeping your house cooler in summer and warmer in winter, without relying on costly heating and cooling appliances.
Hebel PowerPanel50 used for external walls is a great addition to Hebel’s suite of external wall systems. Available in a number of lengths for fast and easy installation without compromising on quality, the Hebel PowerPanel50 is a versatile product that can be used for external and internal walls as well.
Hebel’s PowerBlock+ system is the ideal alternative to double brick with over one and a half times the thermal resistance of double brick, giving you an extremely solid, masonry home that’s comfortable to live in.
Both systems offer great acoustic performance, reducing noise transmission from external sources such as traffic, making your home a more quiet one. They have outstanding thermal properties meaning your house is more comfortable and there is less of a reliance on heating and cooling. Fast to install without compromising on quality, Hebel’s external wall systems deliver a premium system that is available in a range of finishes, colours and patterns.
Applications
External Walls
Flooring
Get in touch.
If you have any queries relating to this product range, please message us today and we will be in touch.
